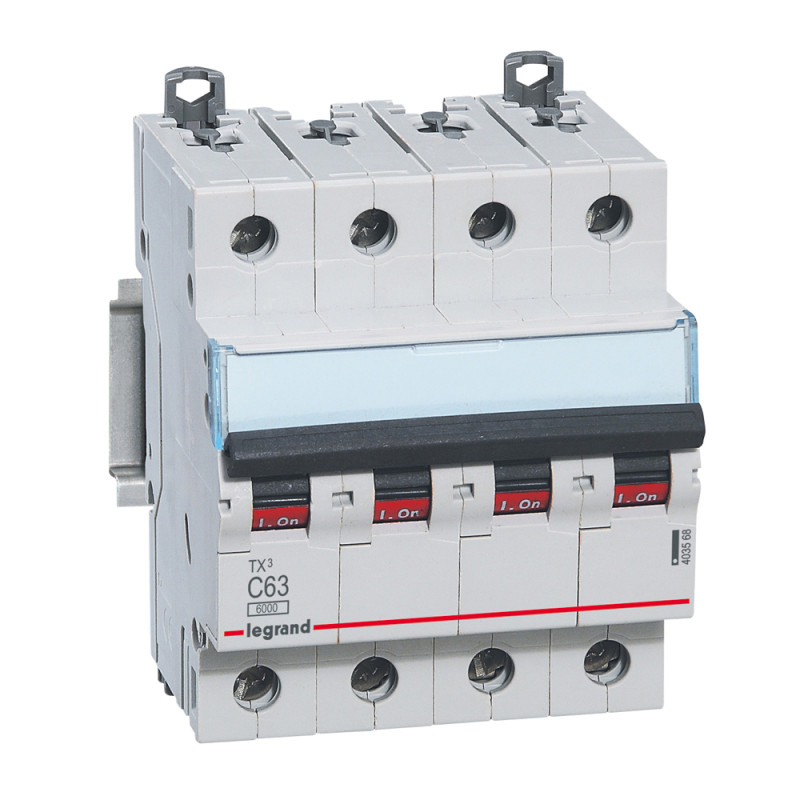

Disjoncteur TX³ 6000A/6kA 4P C63 400V - 4 modules - Legrand - 403568

Disjoncteur magnétothermique destiné à protéger les installations de câblage contre les surcharges et les courts-circuits. Peut également être utilisé pour contrôler et isoler l'installation

Caractéristiques produit

Breaking capacity 6000A according to IEC 60898-1 standard for household installations. Tripping threshold in case of short-circuit between 315A and 630A (C curve between 5 In and 10 In)

Can be supplied either by copper cable, prong busbar (top side or bottom side) or fork busbar (bottom side).

Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.Maximum level of limitation of the let through energy (energy limitation class 3 according to IEC 60898-1 standard).

Can be equipped with Legrand DX3 auxiliaries and accessories.Can be connected to aluminium cable with Legrand DX3 terminal accessory n° 4 063 10.

This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
