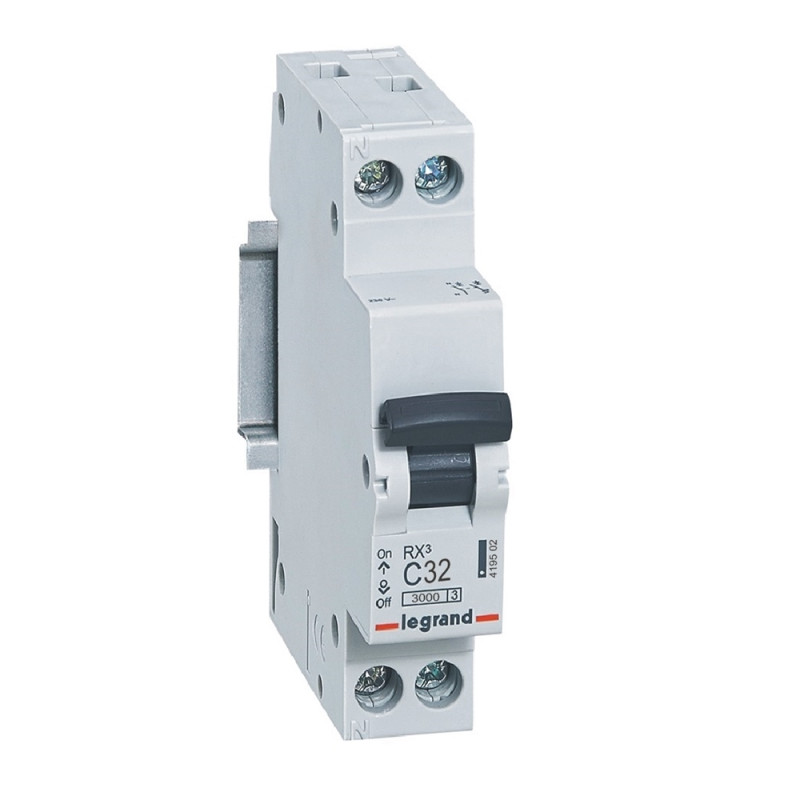

Disjoncteur RX³ 3kA 1P+N 32A courbe C - Legrand - 419502

Breaking capacity 3000A according to IEC 60898-1 standard for household installations. Tripping threshold in case of short-circuit between 160A and 320A (C curve between 5 In and 10 In)

Can be supplied either by copper cable or prong busbar (top side or bottom side).

Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.Maximum level of limitation of the let through energy (energy limitation class 3 according to IEC 60898-1 standard).

This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
